NEMA 14 | 35mm Double Stack Stepper Motor Lead Screw Linear Actuator

NEMA 14 35mm Double Stacked Thickness stepper motor linear actuators have the same cross-section side length but a thicker length, so its force has been greatly improved. NEMA 14 (35mm) linear stepper motors are available in three configurations: captive, non-captive and external linear.

They are characterized by small size, high performance, long-lasting resistance, low noise and high efficiency. The nut is made of engineering plastic, self-lubricating and maintenance free.

Widely used in medical equipment, semiconductor processing, valve control, X-Y table, hand-held instruments or anywhere precise linear motion is required.

Multiple motor lengths, multiple screw guides, and multiple screw strokes are available for customer selection.

- Motor size 35mm, body lengths 34.5mm and 44mm.

- Optional drives, encoders, brakes and controllers

Specifications

35mm NEMA 14 Double Stack Hybrid Linear Stepper Motor(1.8° Step Angle)

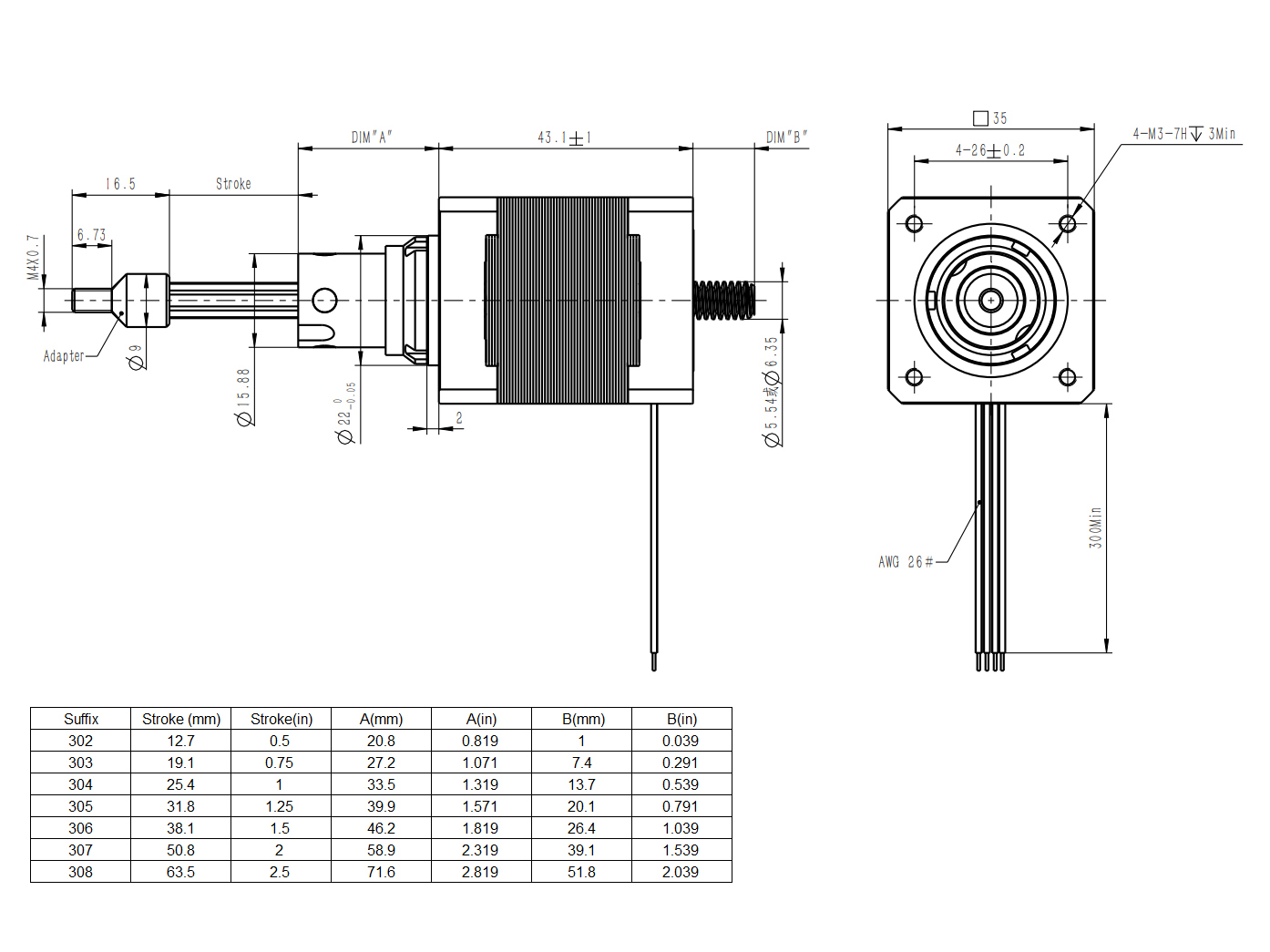

Part No.	Captive	35CC4(X)-V

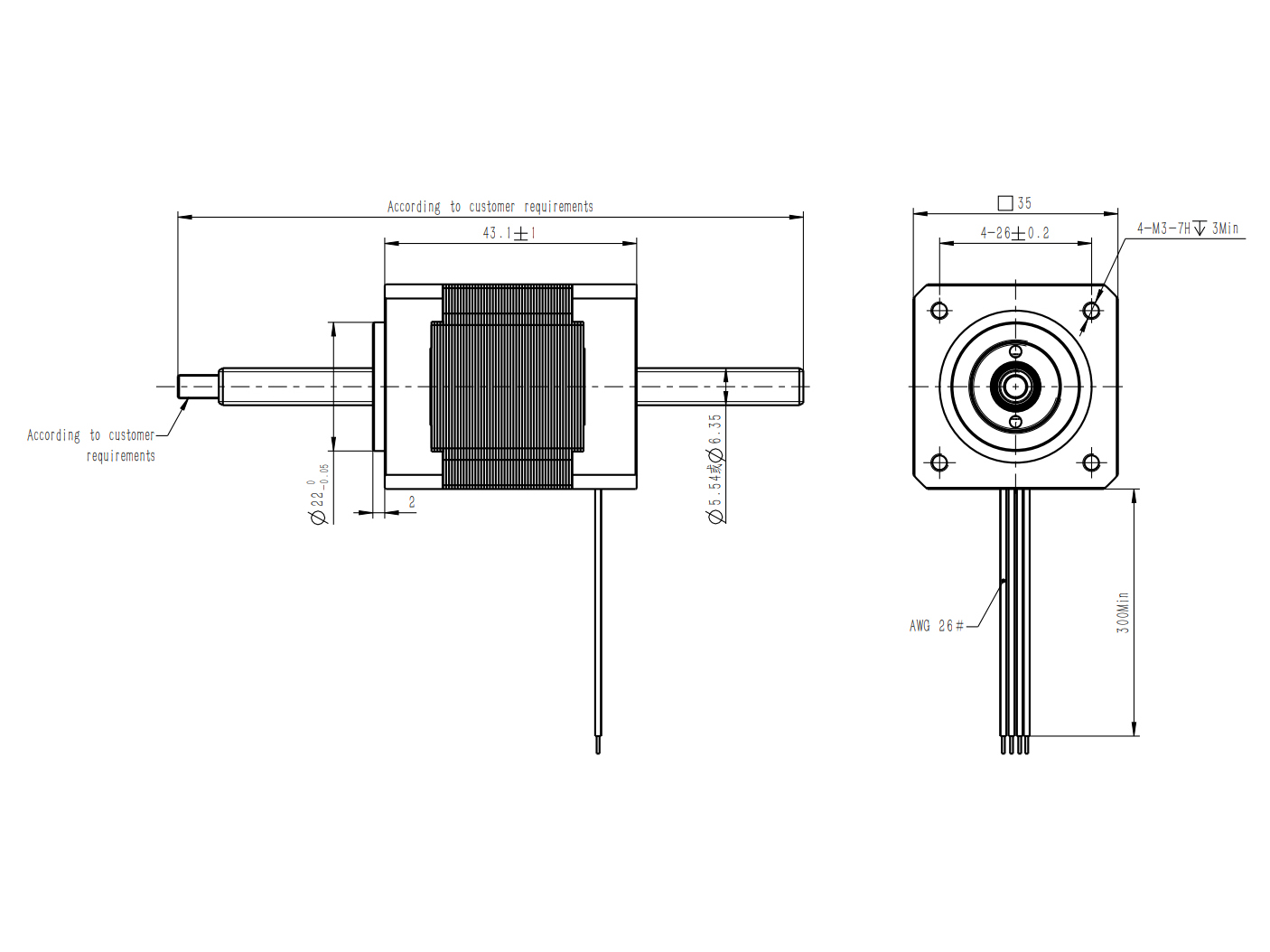

	Non-captive	35NC4(X)-V

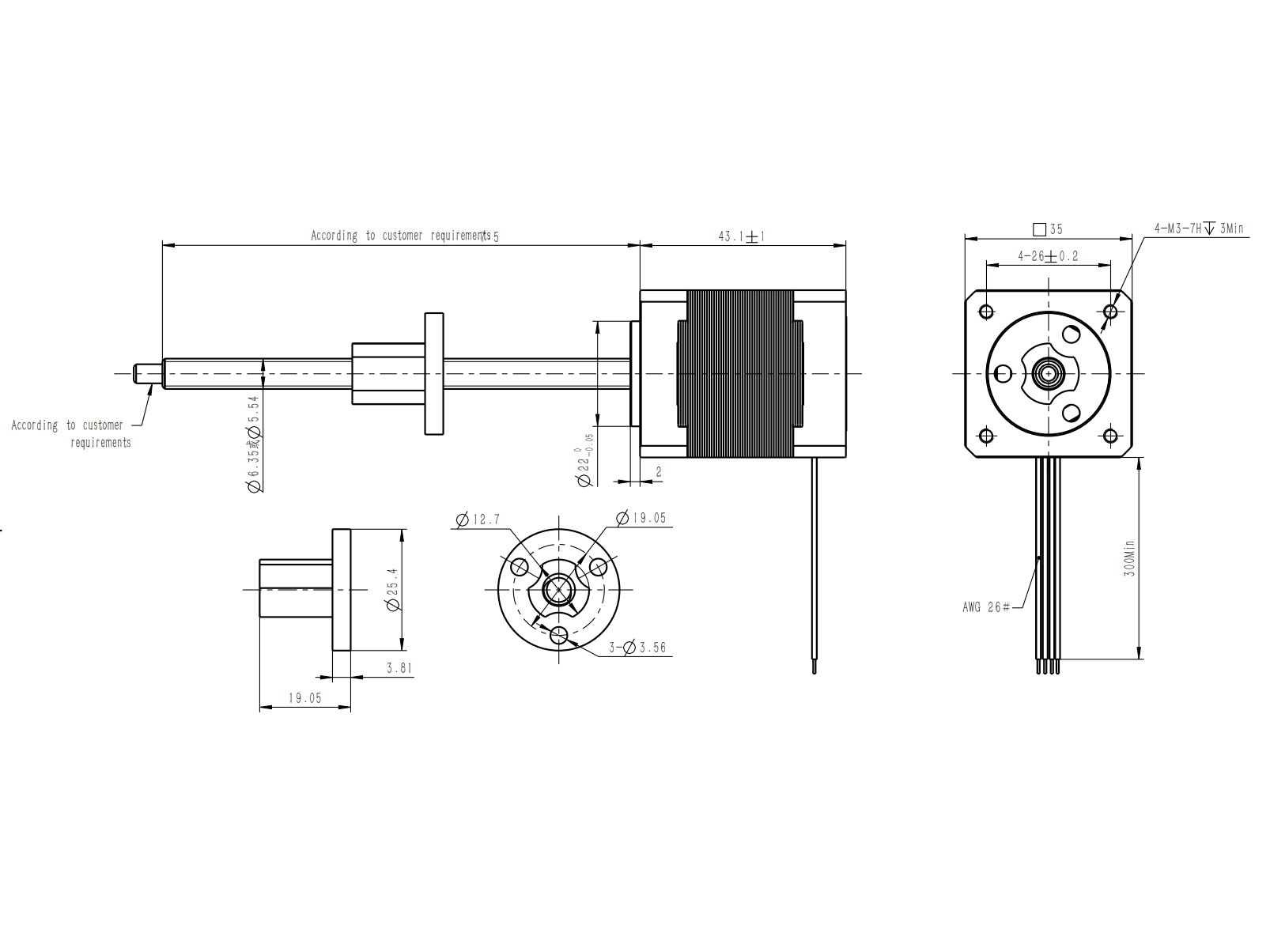

	External Linear	35EC4(X)-V

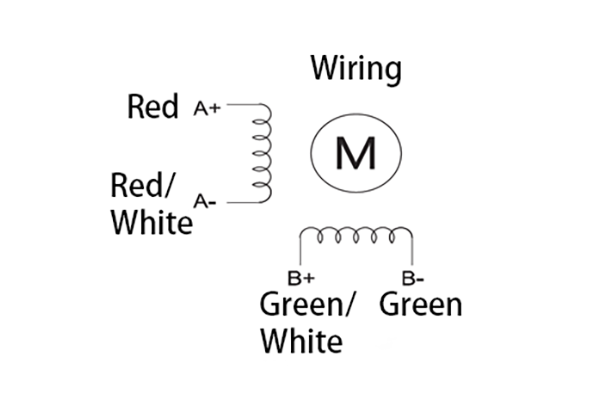

Wiring		Bipolar
Rated voltage		2.33V	5V	12V
Rated current		2A	0.91A	0.38A
Resistance/phase		1.2Ω	5.5Ω	31.6Ω
Inductance/phase		1.95mH	7.63mH	35.6mH
Power consumption		9.1W
Temperature rise		75°C
Weight		240g
Insulation resistance		20MΩ

Standard motors are Class B ratedfor maximum temperature of 130℃.Unipolar drive gives approximately 25% less thrust than bipolar drive.

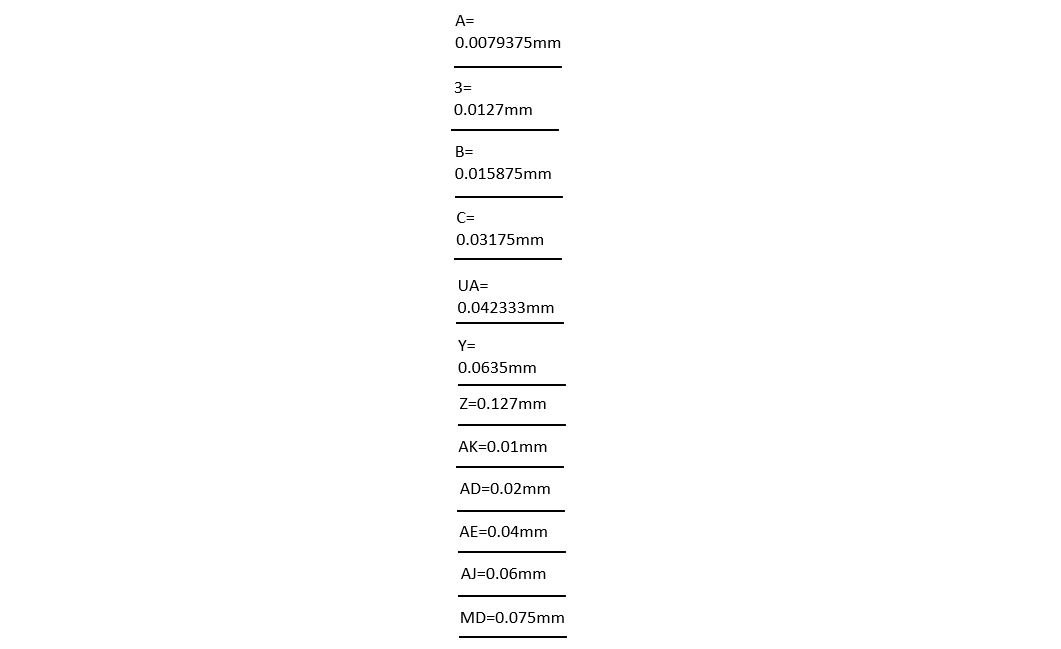

Leadscrew Thread Dimension:

Screw diameter	Step(mm)	Step(in)	Lead(mm)	Lead(in)	Code
φ5.54(7/32in)	0.003048	0.00012	0.6096	0.024	N
	0.006096	0.00024	1.2192	0.048	K
	0.012192	0.00048	2.4384	0.096	J
	0.024384	0.00096	4.8768	0.192	Q
	0.048768	0.00192	9.7536	0.384	R
φ6.35(1/4in)	0.00396875	0.00016	0.79375	0.031	P
	0.0079375	0.00031	1.5875	0.063	A
	0.015875	0.00063	3.175	0.125	B
	0.03175	0.00125	6.35	0.250	C
	0.0635	0.00250	12.7	0.500	Y
	0.127	0.00500	25.4	1.000	Z
	0.00635	0.00025	1.27	0.050	9
	0.0127	0.001	2.54	0.100	3
	0.042333	0.002	8.4666	0.333	UA
φ8(1/8in)	0.01	0.000	2	0.079	AK
	0.04	0.002	8	0.315	AE
	0.06	0.002	12	0.472	AJ
	0.02	0.00079	4	0.157	AD
	0.075	0.00295	15	0.591	MD

* Screw lead could be customized according to customer's request.

Performance Curves

Force vs.Pulse Rate

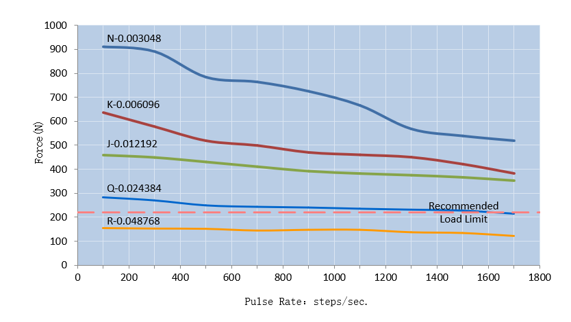

Bipolar·Chopper Drive·100% Duty Cycle φ5.54 Lead Screw

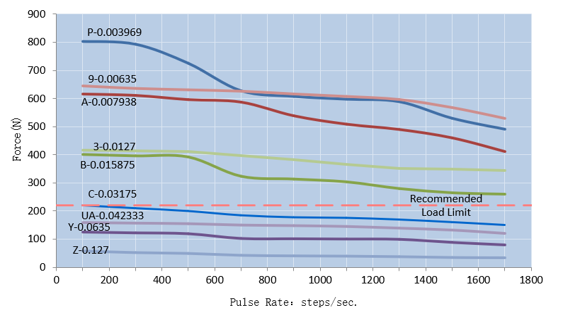

Bipolar·Chopper Drive·100% Duty Cycle φ6.35 Lead Screw

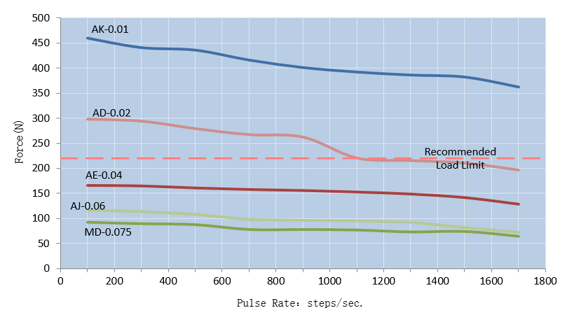

Bipolar·Chopper Drive·100% Duty Cycle φ8 Lead Screw

Chopper drive:motor 2.33V and power supply 24V.

NEMA 14 | 35mm Double Stack Stepper Motor Lead Screw Linear Actuator

Specifications

Performance Curves

Wiring Diagram

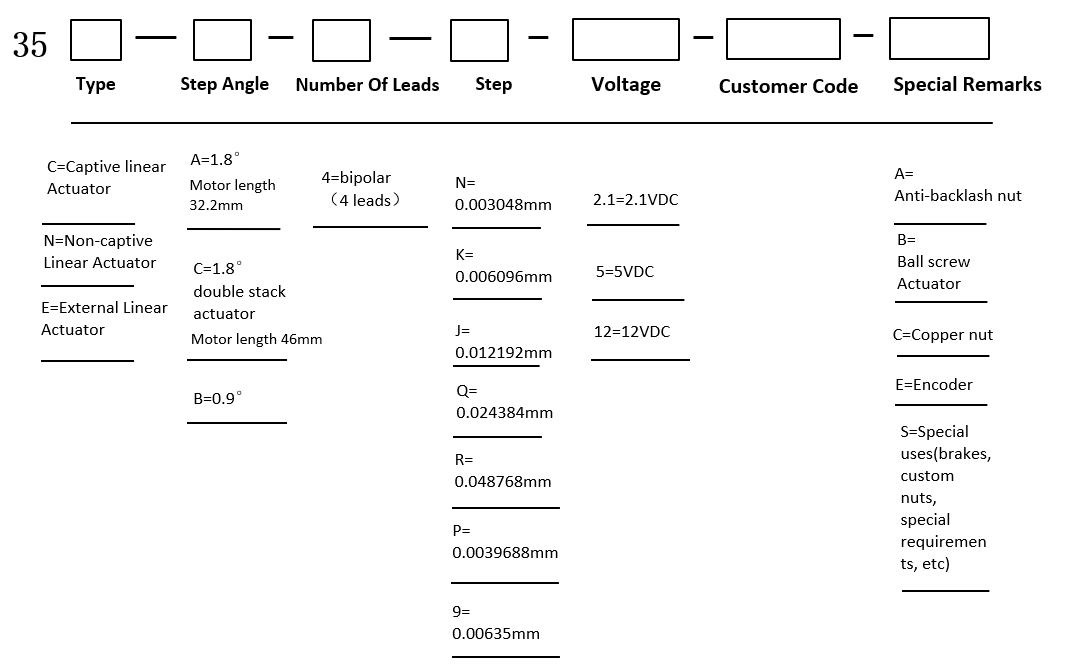

Part Number Guide
