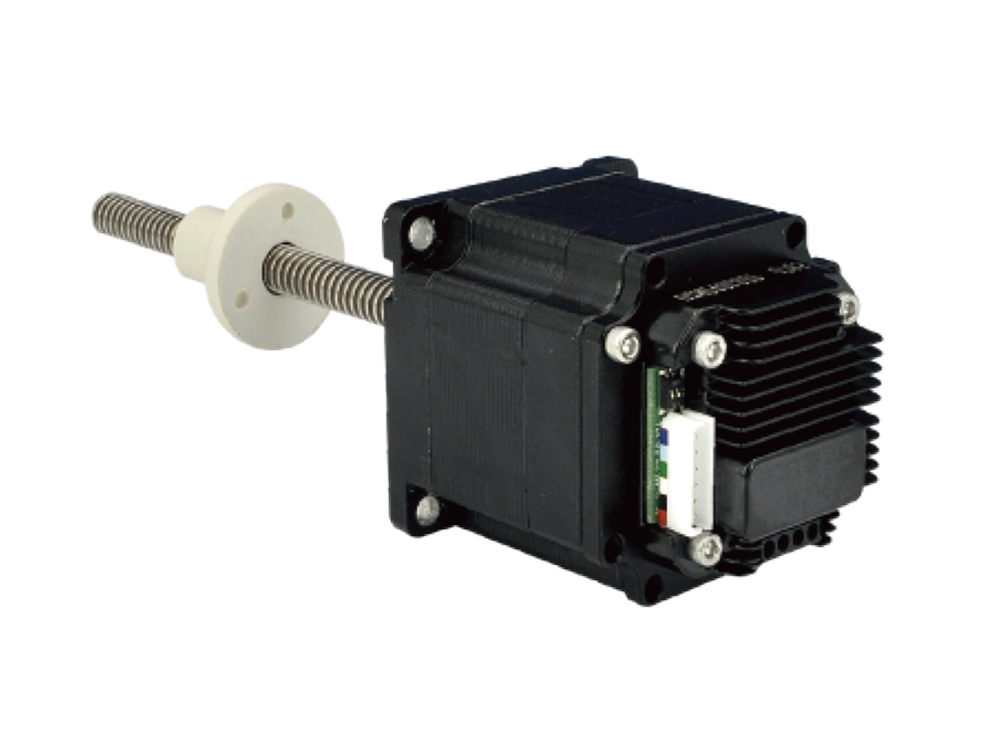

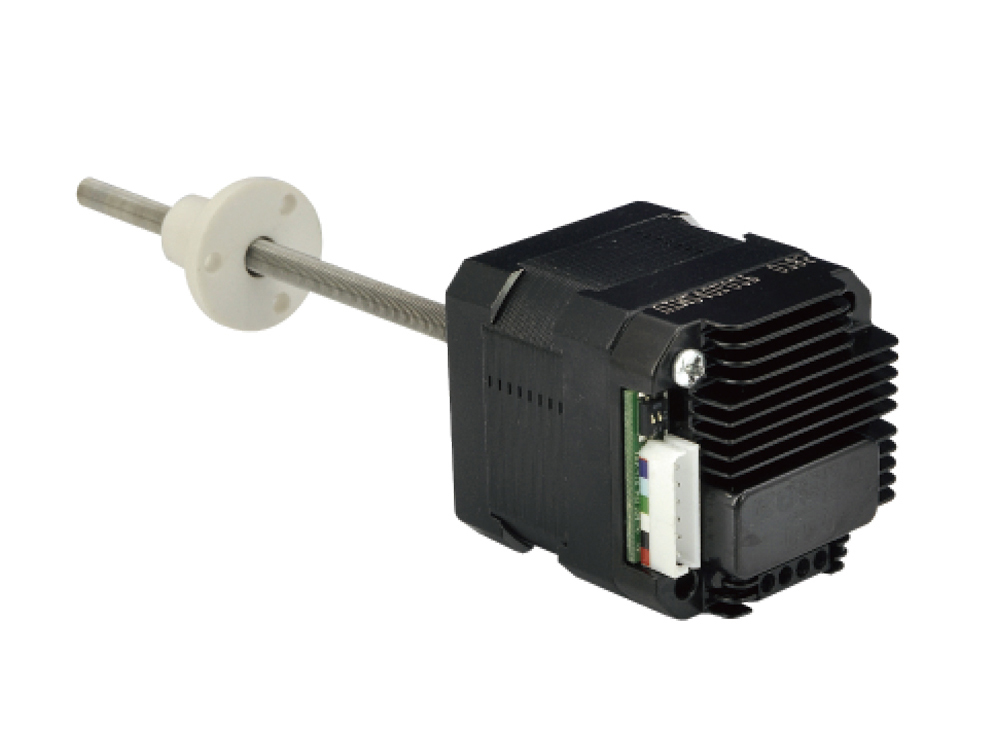

In compact applications, Wheeler motors, pseudo Size17, and Size23 linear stepper motors provide drive integration solutions.Its drive thickness is only 14mm, the drive current range provides 0-2A, subdivision up to 16 subdivision.Drive housing aluminum alloy die-casting, so as to achieve good heat dissipation effect.
Specifications
Performance index
| Power supply voltage | 10V-40VDC |
| Output motor current | Peak value2A |
| Excitation mode | Whole step,half step,4 subdivision,8 subdivision,16 subdivision |
| Working temperature | -40℃~85℃ |
| Outline size | 42.3mm×42.3mm×16.5mm |
| Weight | 0.1kg |

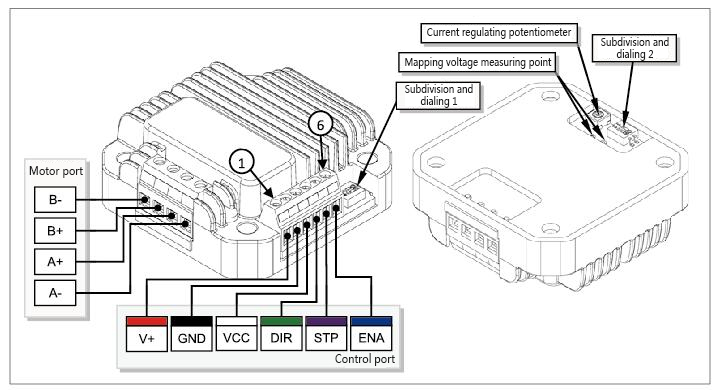

Control port
| Port | Symbol | Explain |
| 1 | V+ | Work voltage positive electrode.Voltage:12-40VDC |
| 2 | GND | Work voltage ground wire.That is, 0V (work voltage is not positive and negative) |
| 3 | VCC | Common anode input. The positive electrode of the pulse and direction is connected to the terminal of the off line signal. |
| 4 | DIR | Directional signal. High and low level control steering. Suspended considered high level. |
| 5 | STP | Step pulse input. The falling edge is an effective pulse. |
| 6 | ENA | Offline signal input. When the power is low, the rotor is in a free state; the motor is controlled when the high level or the suspension occurs. |
Step motor port
A+/A- A phase connection of stepping motor.
B+/B- B phase connection of stepping motor.
Electrical characteristics and thrust curve of motor, please refer to the parameters of Size17&Size23 linear stepping motor.
Warning: the wrong phase will cause permanent damage to the controller!
The resistance between the two leads is generally less than 100 ohms. The resistance between wires of different phases is more than several hundred K ohms, which can be easily measured with a multimeter.
Warning: the port voltage must be in the range of -0.3V~5.3V except for the power and motor ports. Otherwise, permanent damage will occur.

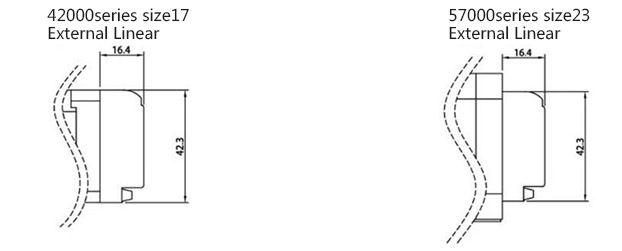

Drive mounting dimensions drawing
